As being specialized in the
Ring Twisting Machine, we have
performed our business with clients
by the most convenient and
rapid operation through the best
service, based on the
technology and R&D.

We will always do our best
with equal mind as beginning for
the various need of
our potential clients.




 Sintered Ring (optional):



 Sintered rings are unique self-lubricating rails for high speed rotating travellers to wind diverse
 yarn on bobbins for spinning and twisting. Those are made proprietary Powder Metallurgical
 technology to guarantee an excellent quality and a highly efficient production of yarn.
  • Strong cohesive force of sintered particles.
  • Critically controlled heat treatment.
  • Critically controlled polishing and pore-opening treatment.



This Ring Twister has high productive capacity and efficiency which result from the continuous research & development, supplements for the quality improvement through the customers guidance and encouragement.

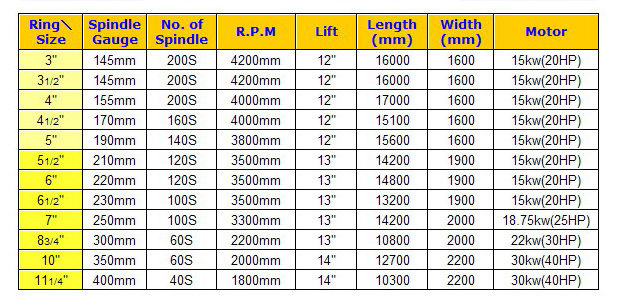

Ring¡¬Size

Spindle Gauge

No. of Spindle

R.P.M

Lift

Length
(mm)

Width
(mm)

Motor

3"

145mm

200S

4200mm

12"

16000

1600

15kw(20HP)

31/2"

145mm

200S

4200mm

12"

16000

1600

15kw(20HP)

4"

155mm

200S

4000mm

12"

17000

1600

15kw(20HP)

41/2"

170mm

160S

4000mm

12"

15100

1600

15kw(20HP)

5"

190mm

140S

3800mm

12"

15600

1600

15kw(20HP)

51/2"

210mm

120S

3500mm

13"

14200

1900

15kw(20HP)

6"

220mm

120S

3500mm

13"

14800

1900

15kw(20HP)

61/2"

230mm

100S

3500mm

13"

13200

1900

15kw(20HP)

7"

250mm

100S

3300mm

13"

14200

2000

18.75kw(25HP)

83/4"

300mm

60S

2200mm

13"

10800

2000

22kw(30HP)

10"

350mm

60S

2000mm

14"

12700

2200

30kw(40HP)

111/4"

400mm

40S

1800mm

14"

10300

2200

30kw(40HP)

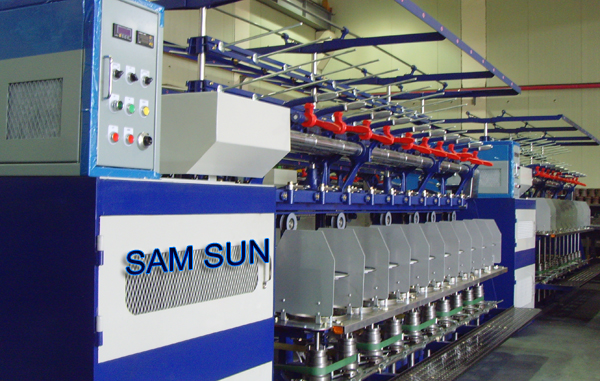

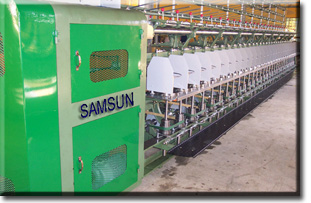

machine photo
